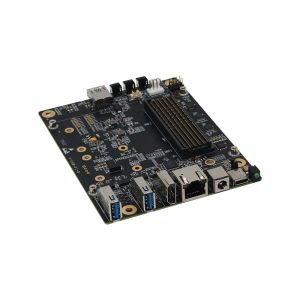

Intelligent PCIe Embedded PC Board AGX Xavier Jetson Carrier Board

Name: Intelligent PCIe Embedded PC Board AGX Xavier Jetson Carrier Board
Brand: PLINK
Price: 289 USD

Quality Intelligent PCIe Embedded PC Board AGX Xavier Jetson Carrier Board for sale

Brand Name : PLINK

Model Number : Y-C9-xavier

Place of Origin : China

MOQ : 1PCS

Price : USD289-USD299\PCS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : In stock

Delivery Time : 15-30 work days

NAME : Intelligent PCIe Embedded PC Board AGX Xavier Jetson Carrier Board

Key word : Intelligent PCIe Embedded PC Board AGX Xavier Jetson Carrier Board

Module : AGX Xavier

USB Type-A : 3x USB 3.0

USB Type-C : 1x USB Type-C

MiniPCIe : 2x MPCIe

Serial port : 2x 3.3V TTL

Button : 1x Power 1x Recovery 1x Reset

DisplayPort : HDMI

M.2 Key M : x1

Tempreture : -40~+85℃

Board Size : 136 mm×100 mm×20 mm

Power Supply : DC +12V

Weight : 112g

Contact Now

Intelligent PCIe Embedded PC Board AGX Xavier Jetson Carrier Board

NVIDIA Embedded Board Jetson AGX Xavier Carrier Board Y-C9-Xavier

The Y-C9 Development board is with NVIDIA Jetson AGX Xavier module, it can carry hundreds of functional modules through 2 Mini PCIe connectors to further expand the system functions. it's a small Jetson carrier board which is for intelligent face recognition and autopilot etc.

Intelligent PCIe Embedded PC Board AGX Xavier Jetson Carrier Board

Product Name	Y-C9-Xavier
Module	NVIDIA Jetson AGX Xavier
AI Performance	32 TOPS
Memory	32GB 256-bit LPDDR4x 136.5GB/s
GPU	NVIDIA Volta architecture with 512 NVIDIA CUDA cores and 64 Tensor cores
Vision Accelerator	2x PVA
CPU	8-core NVIDIA Carmel Armv8.2 64-bit CPU 8MB L2 + 4MB L3
DL Accelerator	2x NVDLA
Storage	32GB eMMC 5.1
Networking	10/100/1000 BASE-T Ethernet
Input Power	DC +12V
Serial port	2* 3.3V TTL
Port	2* miniPCIE 1* M.2 Key M
USB Connector	3* USB 3.0 1* USB Type-C
Display	1* HDMI
Temperature Range	-40°C ~ 85°C
Size	136mm × 100mm ×20mm
Weight	112g
